Inline and Radial Collecting Heads/Inlet Manifolds for connecting hose feed lines to fire appliance pump inlets.

PSL manufacture a variety of Suction Collecting Heads/Inlet Manifolds. All are manufactured in fully heat treated aluminium alloy.

Free swivelling round thread connectors on all in-line models permit the unit to be aligned correctly and easily. Spring loaded non return valves feature stainless steel components to prevent corrosion. Clapper-type valves also available. Opening geometry designed to achieve maximum flow.

Inlets: 70mm Instantaneous (to SNZ PAS 4505) or 2½” British Instantaneous (to BS336) – other options available on request.
Outlets: British Standard Round Thread, with other options available on request.

These are available in both in-line or radial configurations, plus we can design and build to your requirements.

In-Line Models (Standard):
Two-way 70mm NRV inlets x 75mm FRT, Spring Type valve(SKU:064000)
Two-way 2½” BI NRV inlets x 100mm FRT, Spring Type valve(SKU:111700)

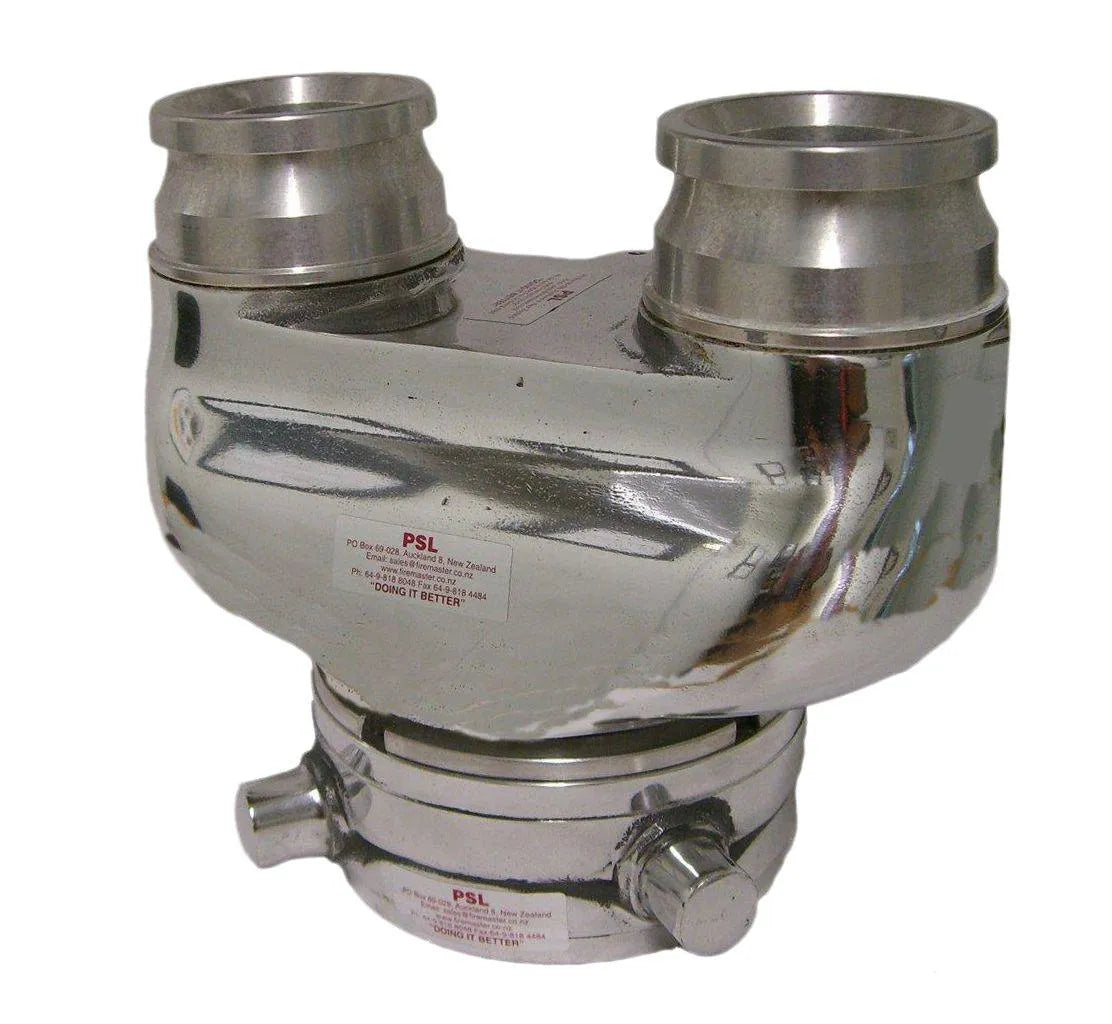

Two-way 70mm inlets x 100mm FRT, Spring Type valve (pictured) (SKU:064100)
Two-way 70mm inlets x 100mm FRT, Clapper Type valve (SKU:064200)

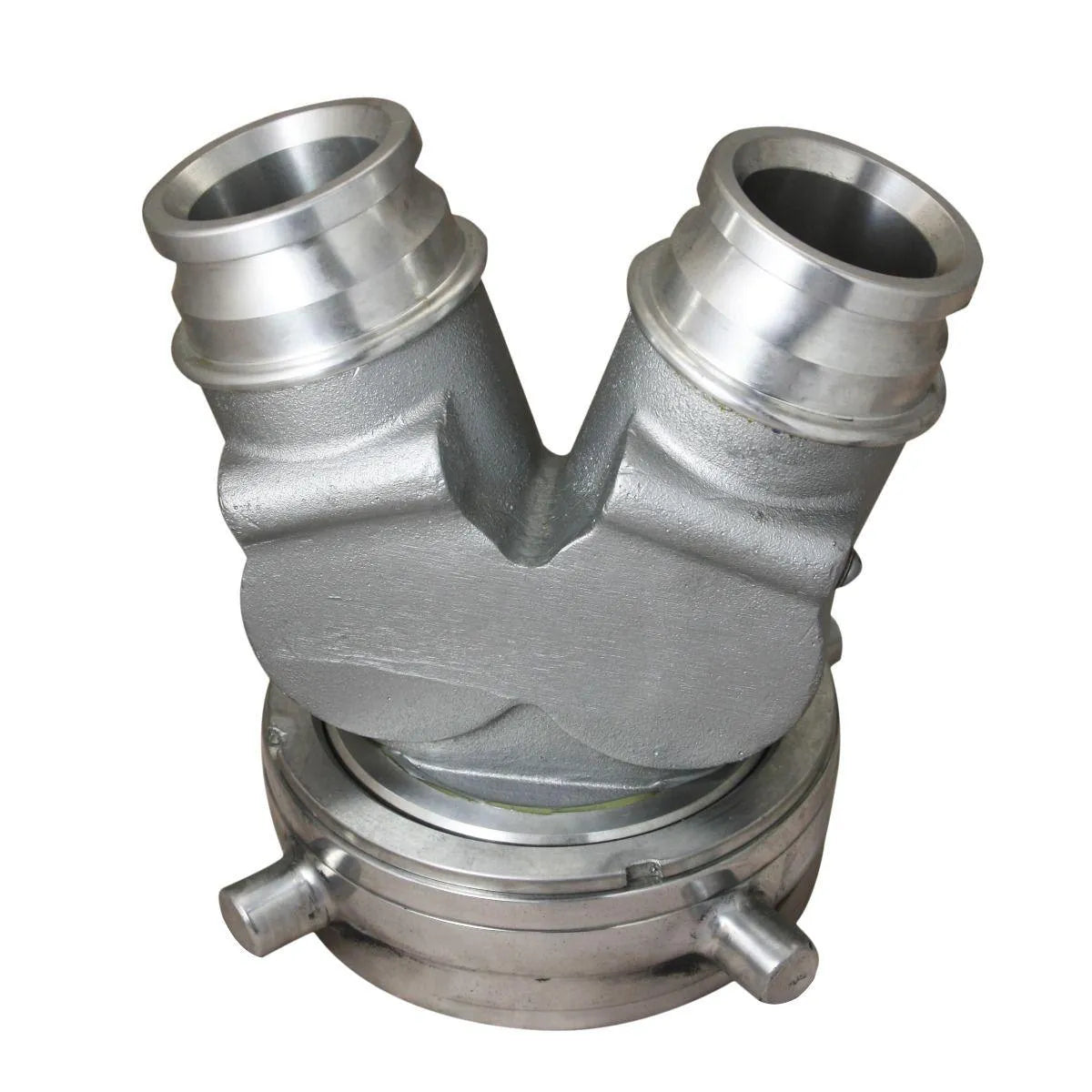

Two-way 70mm inlets x 140mm FRT, Clapper Type valve (pictured) (SKU:063900)
Three-way 2½” BI NRV inlets x 100mm FRT, Spring Type valve(SKU:152600)
Three-way 2½” BI NRV inlets x 140mm FRT, Spring Type valve(SKU:110400)
Three-way 2½” BI NRV inlets + 100mm MRT NRV x 140mm FRT, Spring Type valve c/w Blank Caps (pictured) (SKU:055500)
Three-way 70mm NRV inlets x 140mm FRT, Spring Type valve(SKU:035700)

Customised options available on request

Radial Models (Standard):
Three-way 2½” BI NRV inlets x 140mm FRT, Spring Type valve c/w Blank Caps (SKU:063100)
Three-way 70mm NRV inlets x 140mm FRT, Spring Type valve(SKU:035800)

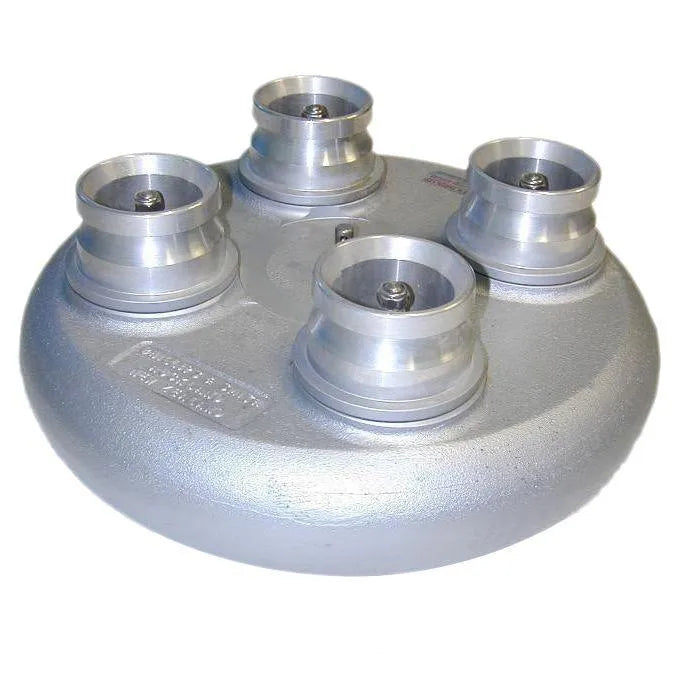

Four-way 2½” BI NRV inlets x 140mm FRT, Spring Type valve (pictured) (SKU:111600)

Customised options available on request



NRV = Non Return Valve
