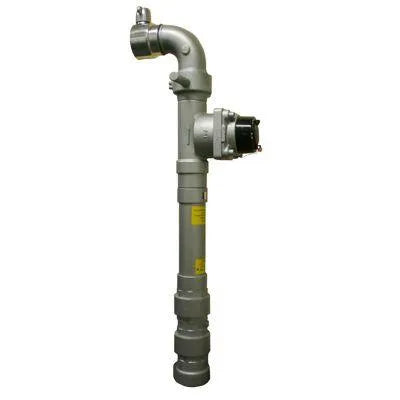

Firemaster Mechanical Metered Standpipe

PSL offer a single head swivel mechanical metered standpipe complete with a double check valve for backflow prevention and a test port. Suitable for Councils, contractors, developers etc, wherever you need the water supply measured and protected. PSL also have full servicing and repair facilities for all standpipes of our manufacture in our Auckland based factory as well as a vast stock of spares to keep your investment in service for many years.

FEATURES

• Aluminium double check valve
• Magnetic Drive dry type meter
• Sealed meter mechanism to avoid tampering
• Flow rate to 50,000 litres per hour
• 64mm round thread base
• Light Alloy head, swivel outlet
• Maximum operating pressure 16 bar
• High total reading to 10 million litres
• Meters are calibrated to requirements of ISO:4064 and OIML R49

SPECIFICATIONS

Nominal Size: 65mm
Minimum Flow Rate: 80 litres per minute
Maximum Flow Rate: 2000 litres per minute
Accuracy: +/- 5%
Weight: 8.75kg

Standard colour finish is painted silver (as pictured), but can be painted to your specifications as required.
