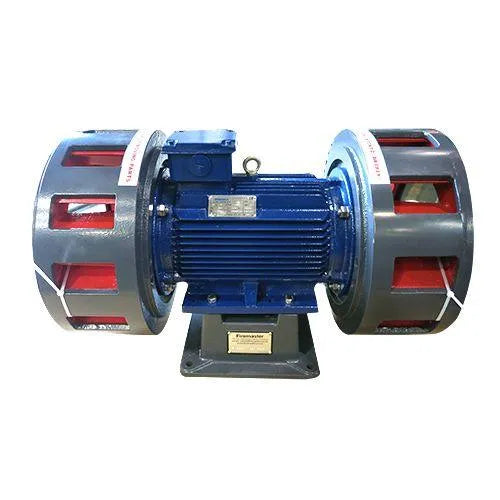

Double Ended Siren – Marinised

The rugged PSL siren is a double ended siren designed to give effective warning over a wide area. Suitable for disaster, emergency, evacuation etc.

SPECIFICATIONS

• Height: 420mm
• Width: 420mm
• Length: 590mm
• Base Plate Centres: Width: 265mm x Length: 225mm
• Weight: 70kgs
• Range: 8km in still air Decibel: Approx 525 Hz – 129 Decibels at 1 metre

Materials & Finishing:

Outer Casing: Light alloy, powder coated with ZINCSHIELD and top coated with Grey DURALLOY XT powder coat. Impellers: Light alloy, powder coated with ZINCSHIELD and top coated with Red DURALLOY XT powder coat. Base Plate: Heat treated light alloy, powder coated with ZINCSHIELD and top coated with Grey DURALLOY XT powder coat. Nuts & Bolts: Stainless Steel Motor casing: Aluminium coated with CAPA THANE for weather resistance. Power Requirements: Three Phase: 380/415 Volt Starting Amps: 46 per phase Running Amps: 6.5 per phase Motor Rated: 8 amps (4 kw) 5 HP many factors will affect the noise and range of a siren. Background, wind, structures and terrain can all affect the sound pressure wave. These factors must be taken into account when siting and evaluating the siren. *Metal parts are protected against the damage caused by a marine or coastal environment.
